HZNINDL INDUSTRIAL / SUN SHADING
160 ZIP Track Blinds
A ZIP-track range with brush-edge detailing and optional integrated lighting.
Product details
| Cassette section | 110 × 162 mm in the brochure drawing |
|---|---|
| Lower rail | 25.2 × 38.49 mm in the brochure drawing |
| Brush edges | Brush detailing intended to reduce insect and dust entry. |
| Lighting | LED strip appears in the exploded view; availability and electrical details to be confirmed. |
| Maximum single-unit size | Brochure lists 6,000 mm W × 4,000 mm H / 24 m²; confirm the final size with the selected fabric and installation. |
| Fabric | Polyester-fibre fabric; the brochure states colour fastness grade 5. Test method and selected fabric require confirmation. |
| Fabric properties | Brochure describes flame retardance, ageing/stretch resistance and temperature resistance; supporting reports are required for the chosen fabric. |
| Wind performance | Brochure states up to 120 km/h. This is not a site-specific design rating; applicable size, fixing and test evidence must be confirmed. |
| Finish | Fluorocarbon coating, as described in the brochure; colour and coating specification to be confirmed. |
| Drive | Tubular motor with controls selected for the project. |
The descriptive page also claims wind level 12, while the table states 120 km/h. These are not treated as equivalent; request a consistent test basis for the selected size.

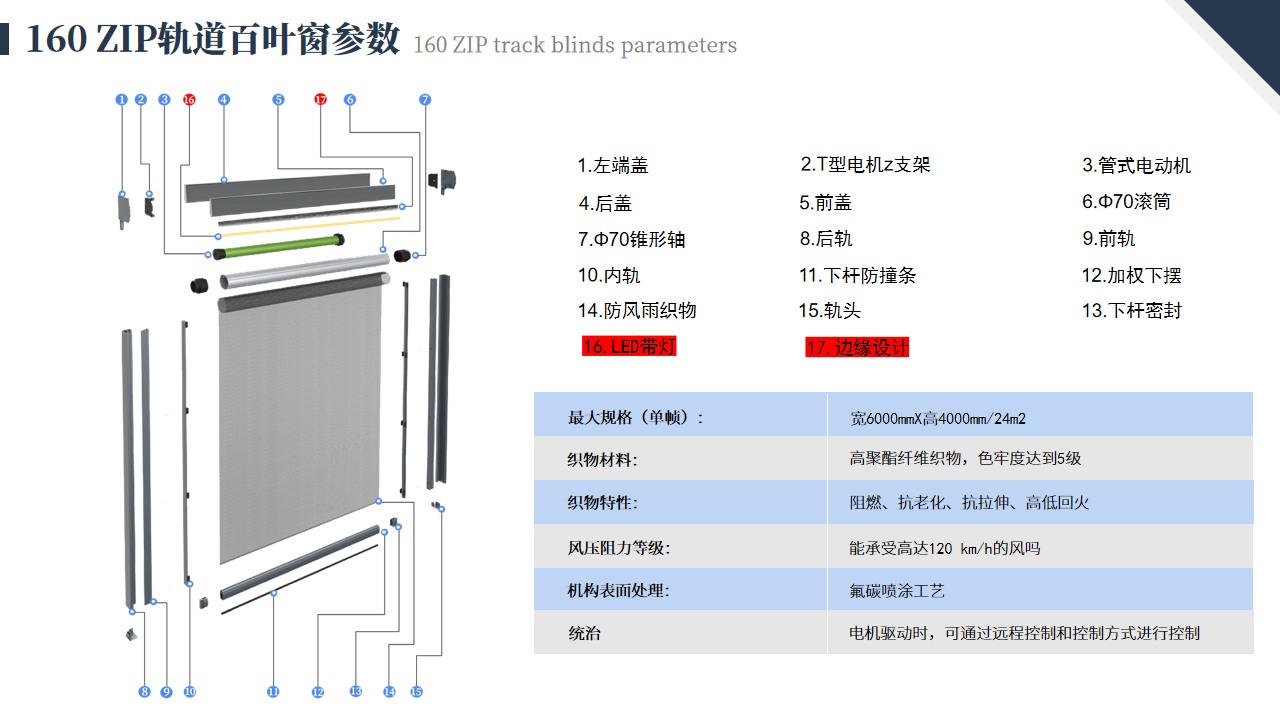

System drawings & product details
Source: supplied HZNINDL brochure. Figures show the catalogue product. Final configuration and supporting documents must be confirmed for the project.
