Installation Layouts
Coordinate mounting position, clearances and fixings.

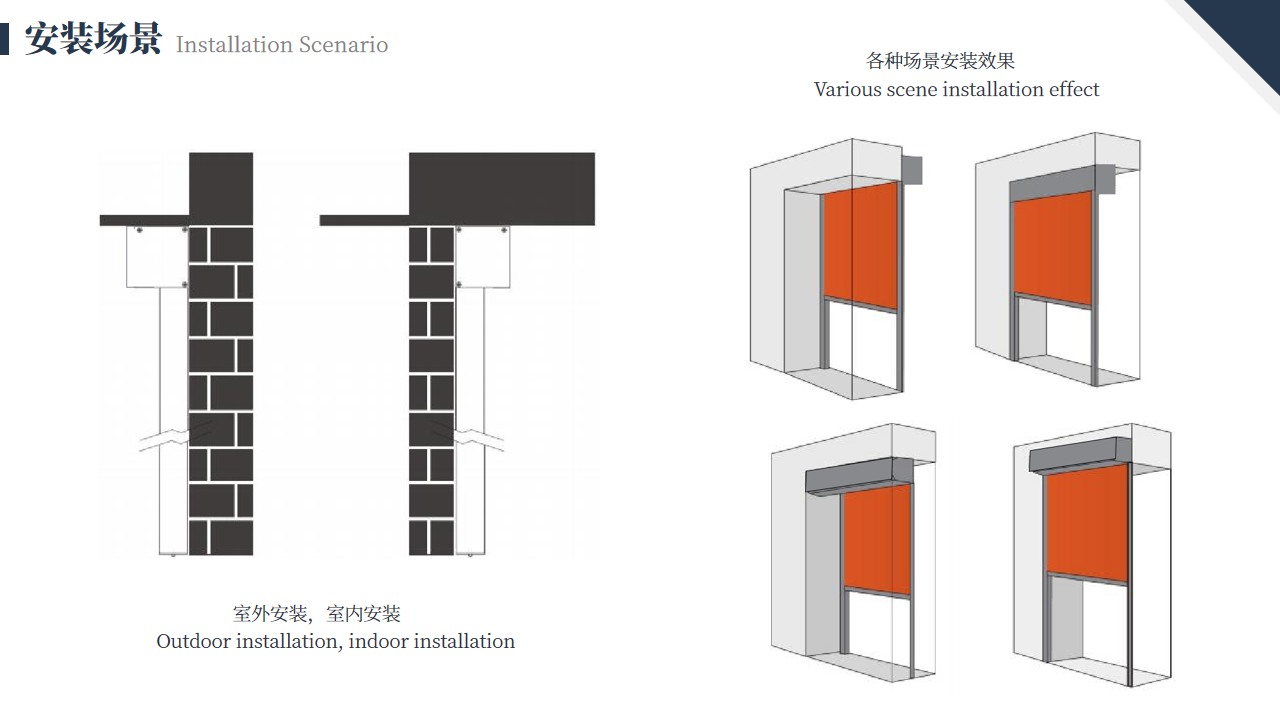

The brochure illustrates mounting on either side of a supporting wall and several positions relative to the reveal. Confirm whether the cassette sits within, in front of or below the opening before final measurement.
Coordinate cassette clearance, guide alignment, supporting substrate, fixing method, motor access and power supply with the installer. A schematic is not a fixing schedule.
