Linear Interlocking Aluminium Cladding

Linear profiles introduce rhythm, depth and shadow to an elevation. Coordinate panel width, joint details and installation direction for a refined architectural finish.

Interlocking profiles with defined linear joints
Vertical or HZNINDLtal layouts, subject to system design
Powder-coated, anodised or decorative finishes subject to availability

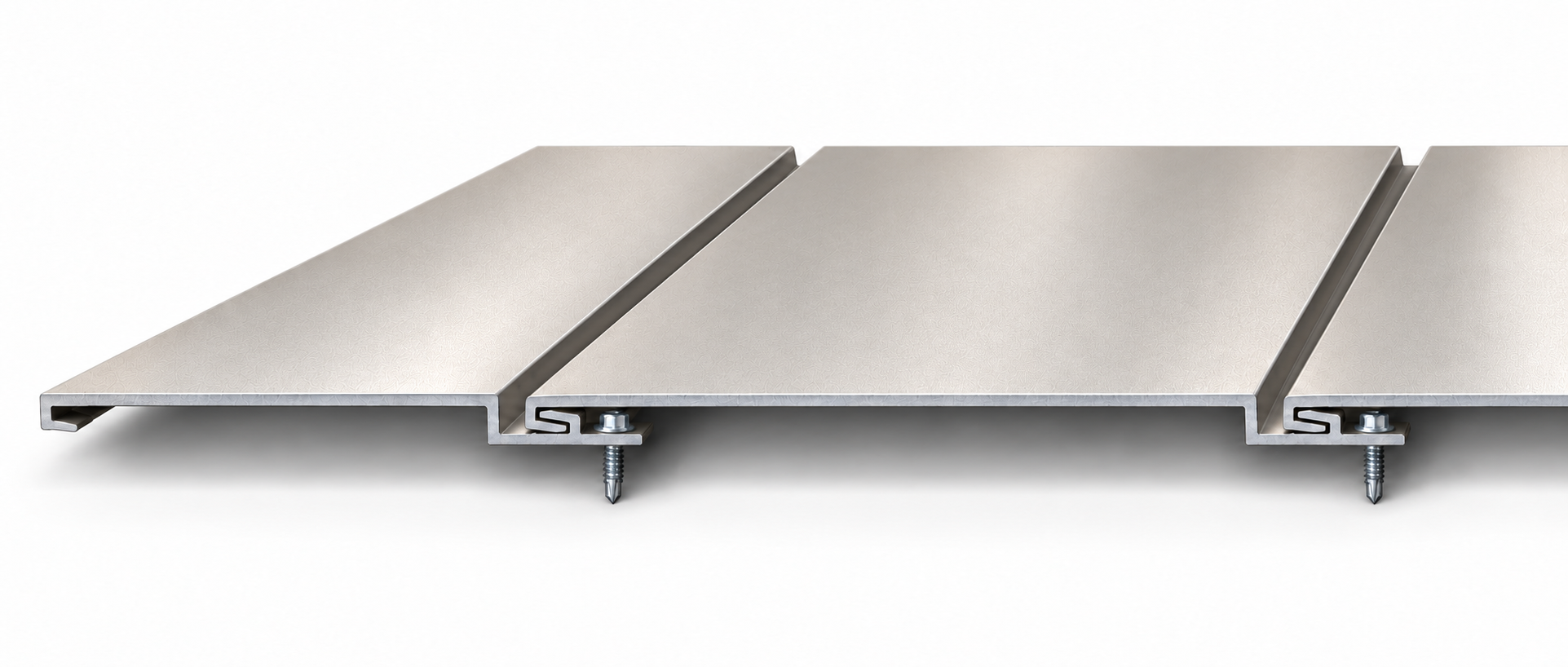

Interlocking Panel Detail

Panel detail render illustrating the interlocking edges, recessed joints and screw fixing positions.

Aluminium cladding interlocking edges, recessed joints and screw fixings — Interlocking panel detail render · Click to view full size

Project coordination

Panel arrangement	Vertical or HZNINDLtal, subject to the selected system design.
Joint & profile	Confirm panel width, recessed joint and interlocking edge details.
Finish	Powder coating, anodising or decorative finishes, subject to availability.
Installation	Coordinate substrate, fixings, corners, openings and drainage before ordering.

Panel thickness, module dimensions, support spacing and finish specification are confirmed for each project.
