Model information from the supplied Slim Sliding & Pivot Doors brochure.
| Opening | Pivot opening |
|---|---|
| Sash sightline | 20 mm |
| Frame sightline | 50 mm |
| Maximum glazing thickness | 38 mm, subject to configuration |
| Maximum height | 6 m |
| Maximum width | 3 m |
| Maximum sash area | 10 m² |
| Maximum sash weight | 800 kg |
| Hardware | Sobinco hardware |

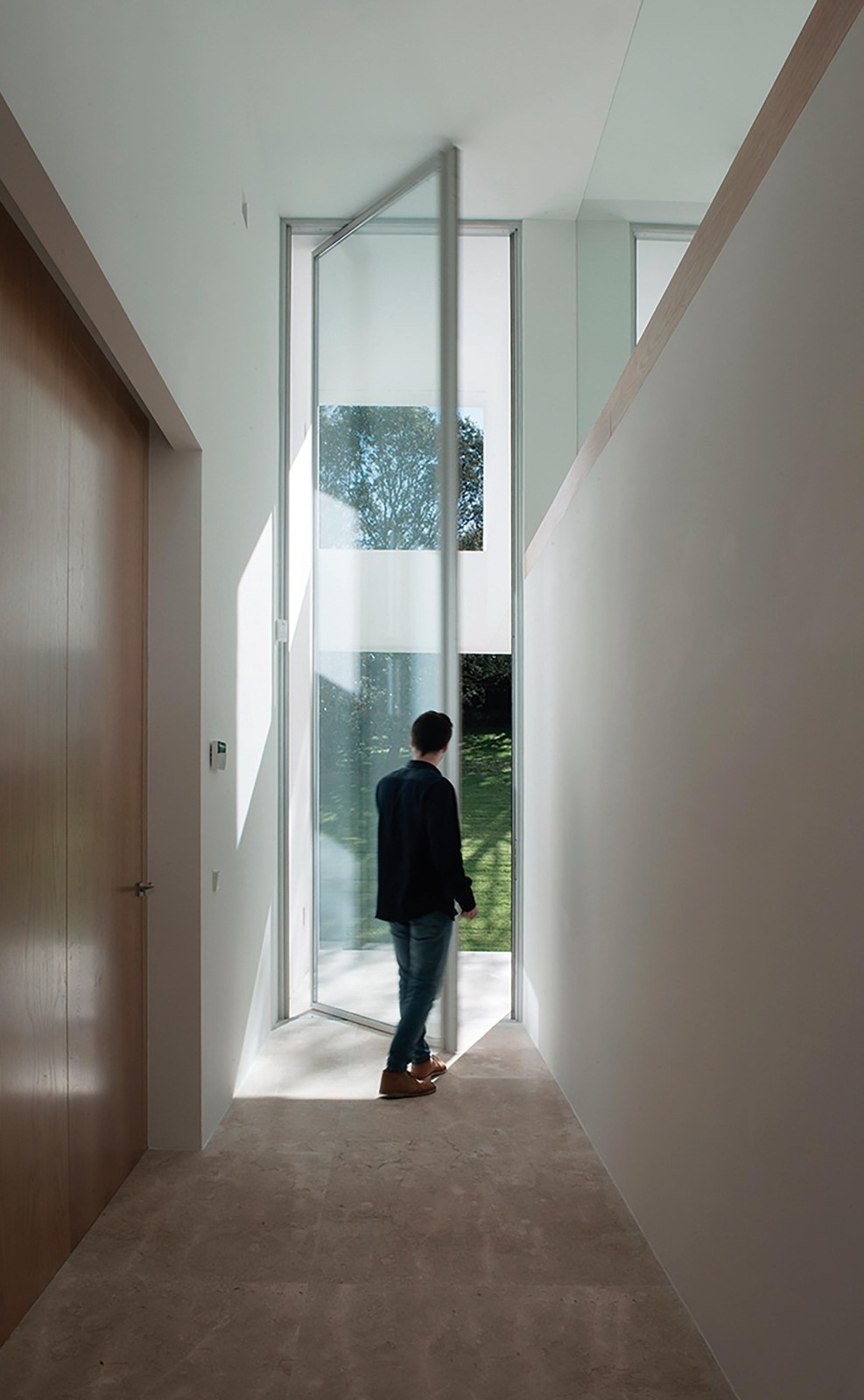

Image shows the product family for reference. Final dimensions, glazing, hardware and performance are confirmed for the selected configuration.
Specifications are taken from the product brochure. Maximum values are not necessarily achievable together and require project-specific confirmation.
Confirm the final sash profile and sightline for the selected configuration.
