SANITARY WARE & PLUMBING

102-TPT

102-TPT rimless toiletDesigns for reference only. Final order prevails.

Rimless Flushing Toilet

A rimless flushing toilet with a P-trap outlet. Refer to the dimension drawing below for dimensions and installation positions.

Model102-TPT
Product typeRimless flushing toilet
Dimensions (L × W × H)650 × 385 × 825 mm
OutletP-trap
Roughing-in180 mm

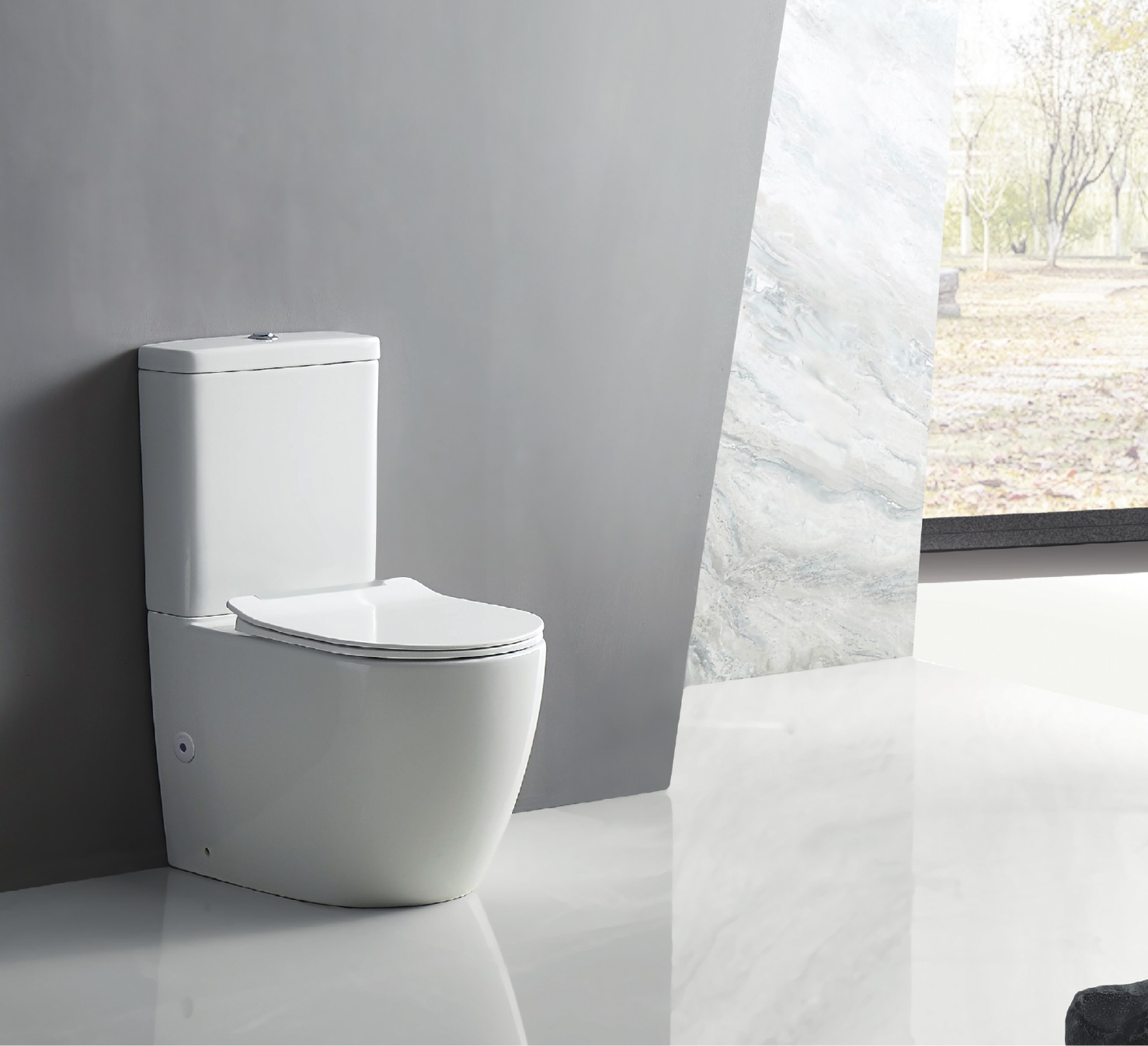

102-TPT bathroom applicationDesigns for reference only. Final order prevails.
Product application

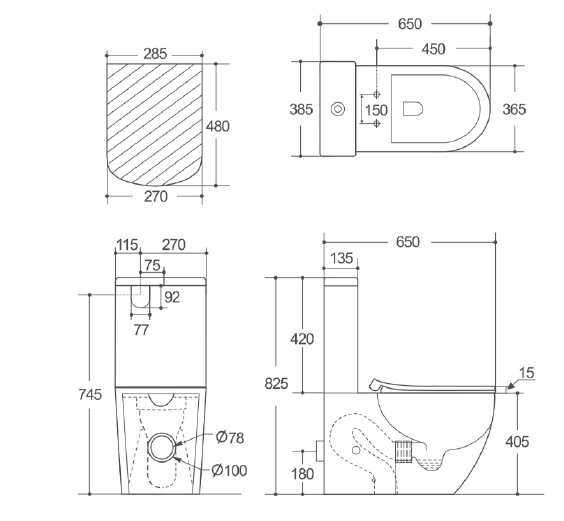

102-TPT dimension drawing
Dimension drawing (mm)
